Detailed introduction
Helipad flood lights and heliport flood lights are essential components of a helipad lighting system.
Helipad flood lights are designed to provide intense and uniform illumination on the helipad surface. They are crucial for ensuring visibility during night operations, low-light conditions, or adverse weather. These lights are strategically placed around the helipad to cover the entire landing area, allowing pilots to clearly see the boundaries, markings, and any obstacles.
The heliport flood light serves a similar purpose but is often installed in the vicinity of the heliport to enhance overall visibility and safety. It can help mark the approach path and provide additional lighting for ground crew activities.
The helipad lighting system, of which these flood lights are a part, is engineered to meet the strict requirements of aviation safety. The lights are typically made from high-quality materials that are resistant to harsh weather conditions, vibrations, and impacts. They are designed to be durable and reliable, ensuring continuous operation even in challenging environments.
The intensity and color temperature of the flood lights are carefully selected to provide optimal visibility without causing glare or interfering with the pilot's vision. Some helipad flood lights may also have features like adjustable brightness and directional control to customize the lighting according to specific needs.
In conclusion, helipad flood lights and the helipad lighting system play a vital role in ensuring the safety and efficiency of helicopter operations by providing reliable illumination on the helipad and heliport areas.
Overview:
The AO-HP-F2 helipad flood lights are used to illuminate helidecks and act as heliport lighting at night. Specifically designed for helipads, these lights provide glare-free and uniform surface illumination for landing and loading operations. The LED surface floodlights improve pilot depth perception by reflecting off the helipad surface, enabling pilots to estimate their altitude more accurately during landing.
The helideck floodlight is employed in combination with other types of heliport lighting products, such as heliport TLOF lights, FATO lights, heliport aiming point lights, and others. Heliport lighting includes helipad flood lights, heliport flood lights, and helipad flood lights.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Employ super bright LEDs that have high lumen output while consuming relatively less energy.
2. The input voltage can be either DC (within the range of 12 to 48 volts DC) or AC (100 to 265 volts AC at a frequency of 50 to 60 hertz).
3. The enclosure is made of stainless steel and coated with powder through electrostatic field application, guaranteeing excellent weather resistance.
4. The tilt angle of the luminaire can be adjusted easily to maximize heliport illumination. An efficient photometric design provides excellent light distribution, ensuring compliance with ICAO and FAA requirements.
5. The assembly has a low profile of less than 25 centimeters and is mounted at frangible points.
6. The fragile coupling effectively reduces secondary damage to helicopters.
Specification:
|
Product Name |
Helipad flood lights heliport flood light helipad lighting system AO-HP-F2 |
|
Mode NO.: |
AO-HP-F2 |
|
Color: |
White |
|
Light source:
|
LEDs |
|
luminous efficiency: |
>120lm/w |
|
Beam Angle: |
30 * 60 degree |
|
Installation type: |
Elevated (surface installation) |
|
Flashing Characteristics:
|
Fixed light
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption 10W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
reflector , stainless steel powder coated body. |
|
Weight(kg): |
2.4kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. VHF pilot to ground remote control 2. Infra-Red (IR) light for NVG |

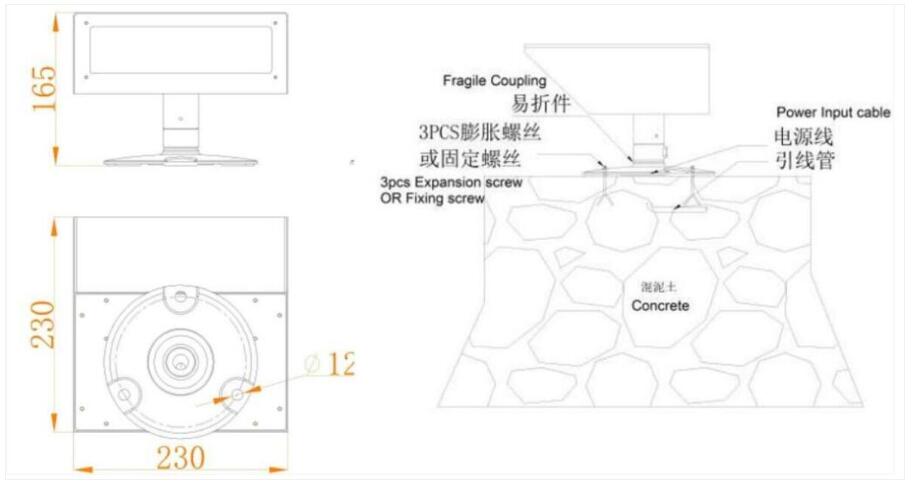

Dimension & Installation:
Applications:
Helipad flood lights, heliport flood lights, and the helipad lighting system are essential for ensuring safe and efficient helicopter operations.
Helipad flood lights are designed to provide intense illumination on the helipad surface. They are crucial for night landings and takeoffs, as well as for operations in low visibility conditions. These lights help pilots clearly see the helipad boundaries, markings, and any potential obstacles.
Heliport flood lights serve a similar purpose but are often installed in the surrounding area of the heliport to enhance overall visibility. They can help mark the approach path and provide additional lighting for ground crew activities.
The helipad lighting system integrates these flood lights with other lighting elements such as heliport beacons, approach lights, and perimeter lights. This comprehensive system ensures that the helipad and its vicinity are well-lit at all times, enhancing safety for pilots, passengers, and ground personnel.
The use of high-quality LEDs in these lights offers several advantages. They consume less energy, have a longer lifespan, and provide consistent and reliable illumination. Additionally, the lighting system can be designed to meet specific regulatory requirements such as those set by the ICAO and FAA.
In conclusion, helipad flood lights, heliport flood lights, and the helipad lighting system play a vital role in ensuring the smooth and safe operation of helipads and heliports.
