The helipad beacon, also known as heliport beacon light, is a crucial safety feature in the field of aviation.
Helipad beacons are designed to be highly visible from a distance, providing clear indication of the location of a helipad or heliport. They are typically installed at a prominent position on or near the helipad to attract the attention of pilots.
These beacons emit a distinctive light pattern that can be easily recognized by pilots during both day and night. The light may be steady, flashing, or a combination of both, depending on the specific design and requirements. The color of the light is usually bright white or a combination of colors such as white and red, which are highly visible against the background.
One of the main functions of helipad beacons is to assist pilots in locating the helipad during approach and landing. In low visibility conditions, such as fog, rain, or at night, the beacon becomes even more important as it provides a reliable visual reference for pilots.
Helipad beacons also play a role in enhancing safety by warning other aircraft and ground personnel of the presence of a helipad. This helps to prevent collisions and ensures the safety of all those involved in helicopter operations.
In addition to their safety functions, helipad beacons can also be used for aesthetic purposes. They can add a professional and distinctive look to a helipad or heliport, enhancing its overall appearance.
Overall, helipad beacons are an essential component of helipad and heliport infrastructure, providing crucial visual guidance and enhancing safety for helicopter operations.

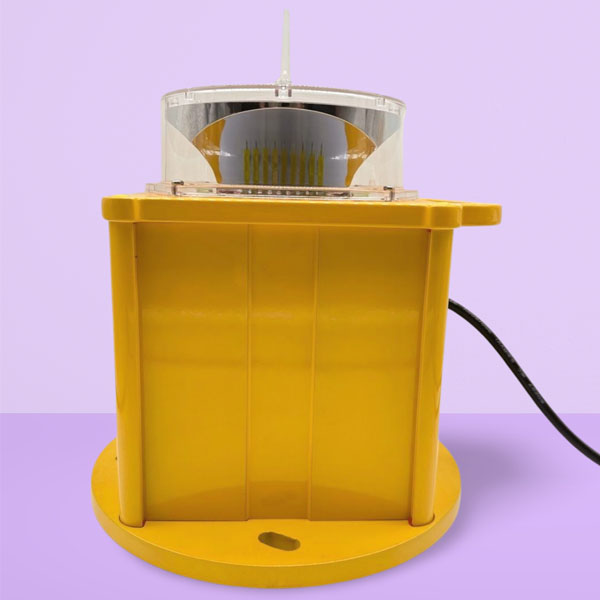

Overview:
The heliport beacon for helipad lighting, model AO-HP-B5, functions as essential visual guidance and identification for the heliport. It is recommended to install the heliport beacon on or near the heliport, preferably at an elevated position. This placement ensures that it does not cause glare for a pilot at close range. The helipad beacon flashes white four times within 0.8 seconds and then pauses for 1.2 seconds. Subsequently, it commences a new cycle lasting 2 seconds (consisting of 0.8 seconds of flashing and 1.2 seconds of pause).
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Employ super bright brand LEDs that possess high intensity while consuming less energy.
2. The input voltage can be either DC (within the range of 12 to 48 volts DC) or AC (100 to 265 volts AC, at a frequency of 50 to 60 hertz).
3. A clear polycarbonate lens is utilized for converging light. Additionally, it provides corrosion resistance and UV protection.
4. An efficient photometric design guarantees excellent light distribution, ensuring compliance with ICAO and FAA requirements.
5. The base is made of die-cast aluminum, which shows strong corrosion resistance and offers protection against shock and vibrations, ensuring a long service life.
6. The base with UV protection and a powder-coated bright yellow color increases visibility.
Specification:
|
Product Name |
Helipad beacon heliport beacon light helipad lighting system AO-HP-B5 |
|
Mode NO.: |
AO-HP-B5 |
|
Color: |
White |
|
Light source:
|
LEDs |
|
Light Intensity(cd): |
2500cd |
|
Horizontal Output(degrees): |
360 degree |
|
Installation type: |
Surface mounting |
|
Flashing Characteristics:
|

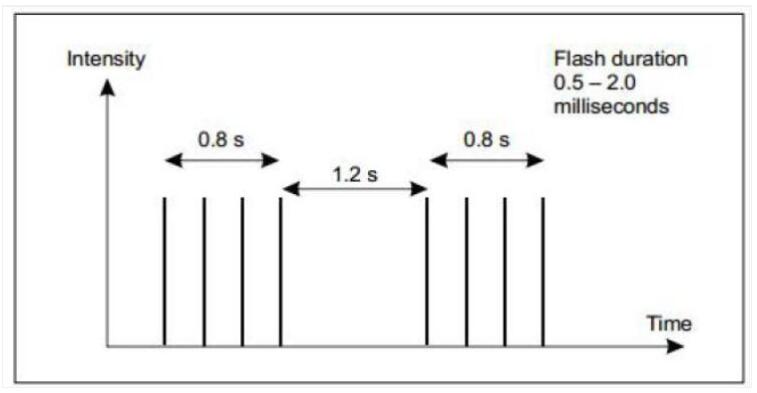

4 quick flashes in 0.8s, off 1.2s (Morse code “H”)
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption <12W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
3.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. VHF pilot to ground remote control 2. Mounting bracket |

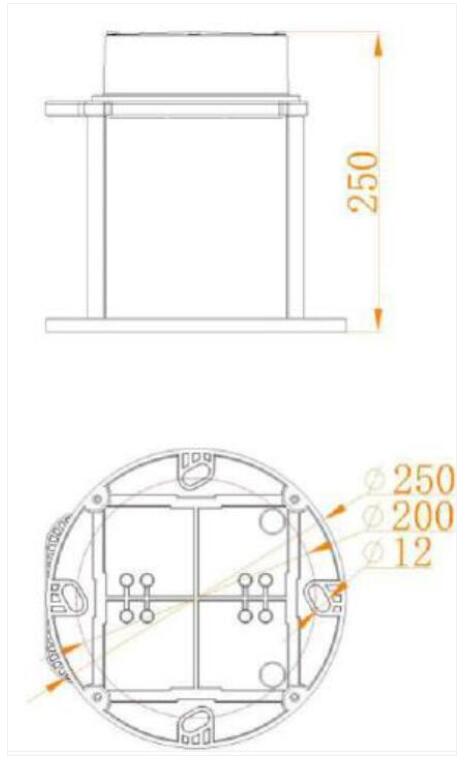

Dimension & Installation:
Applications:
The helipad beacon, heliport beacon light, and helipad lighting system play crucial roles in ensuring safe helicopter operations.
For pilots, these beacons and lighting systems serve as essential visual guides. The helipad beacon, with its distinct flashing pattern, can be easily spotted from a distance, helping pilots locate the helipad even in low visibility conditions such as fog, rain, or at night. The heliport beacon light further enhances visibility, making the heliport clearly distinguishable.
In addition to aiding in navigation, the helipad lighting system provides illumination on the landing area. This ensures that pilots have a clear view of the helipad surface, helping them make safe landings and takeoffs. The high-intensity LEDs used in these systems offer bright light while consuming less energy.
These systems also benefit air traffic controllers and ground personnel. They help in identifying the helipad location and monitoring helicopter movements. The clear polycarbonate lenses with corrosion resistance and UV protection ensure durability and long service life.
Overall, the helipad beacon, heliport beacon light, and helipad lighting system are integral components of helipad infrastructure, enhancing safety and efficiency in helicopter operations.
