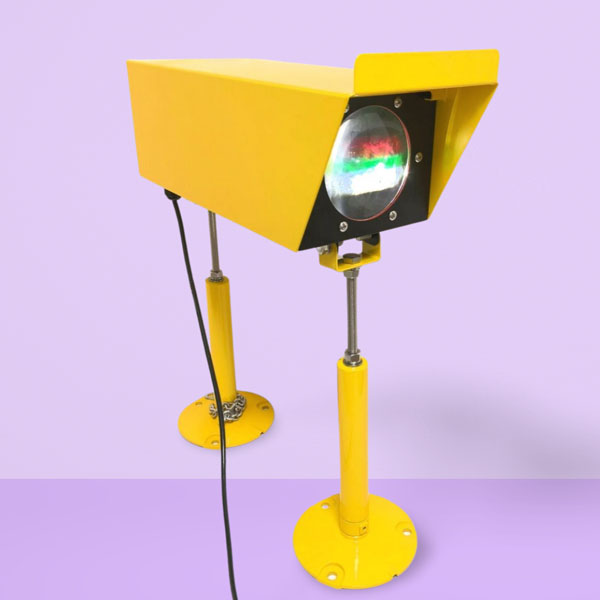

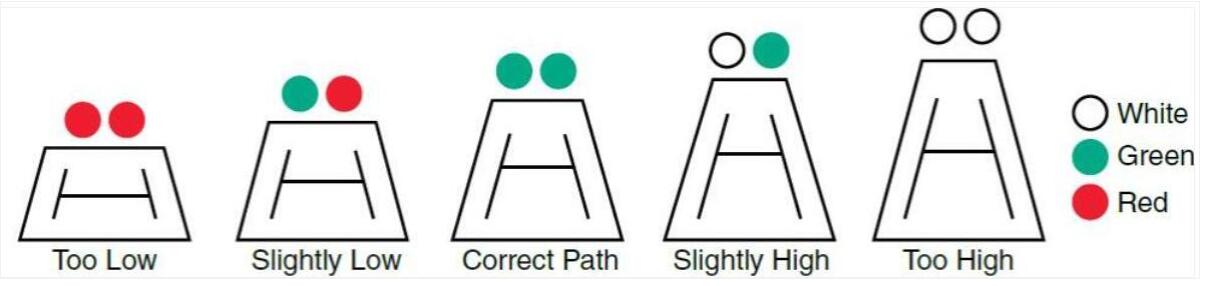

The CHAPI Light System, specifically the AO-HP-CHAPI, has a full name of Heliport Approach Path Indicators, with CHAPI being its abbreviated name. The “C” in CHAPI stands for ‘Cramp’, the name of the person who invented the system 40 years ago. As a result, even up to now, we still use CHAPI to refer to HAPI lights. Our LED CHAPI utilizes LED technology to provide pilots with a safe and accurate glide slope during the final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are visible to the pilot, presenting combinations of white, green, and red to indicate whether the path is too high, too low, or within the 6° ±0°15′ glide slope. Angle deviations that are excessively high display one or two white lights, while those that are too low show one or two red lights. The visual indication of the HAPI light is as follows: one helipad requires two pieces of HAPI lights.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Utilize super bright brand LEDs that offer high intensity while consuming relatively less energy.
2. The input voltage can be either DC (within the range of 12 to 48V DC) or AC (100 to 265V AC at a frequency of 50 - 60Hz).
3. A clear polycarbonate lens is employed for concentrating light. Additionally, it provides corrosion resistance and UV protection.
4. An efficient photometric design guarantees excellent light distribution, ensuring compliance with ICAO and FAA requirements.
5. The housing is constructed from stainless steel, which has strong corrosion resistance and offers protection against shock and vibrations.
6. A powder coating with UV protection in a bright yellow color increases visibility.
7. Fragile couplings effectively reduce secondary damage to helicopters.
Specification:
|
Product Name |
CHAPI light Helicopter Approach Path Indicator AO-HP-CHAPI |
|
Mode NO.: |
AO-HP-CHAPI |
|
Color: |
White,Green and Red |
|
Light source:
|
LEDs |
|
Body materials: |
Stainless steel |
|
Leg Materials: |
Die casting aluminum with Fragile coupling |
|
Installation type: |
Surface mounting |
|
Flashing Characteristics:
|
steady burning with fixed light
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption <20W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated Stainless steel |
|
Weight(kg): |
10kg |
|
IP Grade: |
IP65 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. VHF pilot to ground remote control 2. Clinometer 3. Solar powered system |

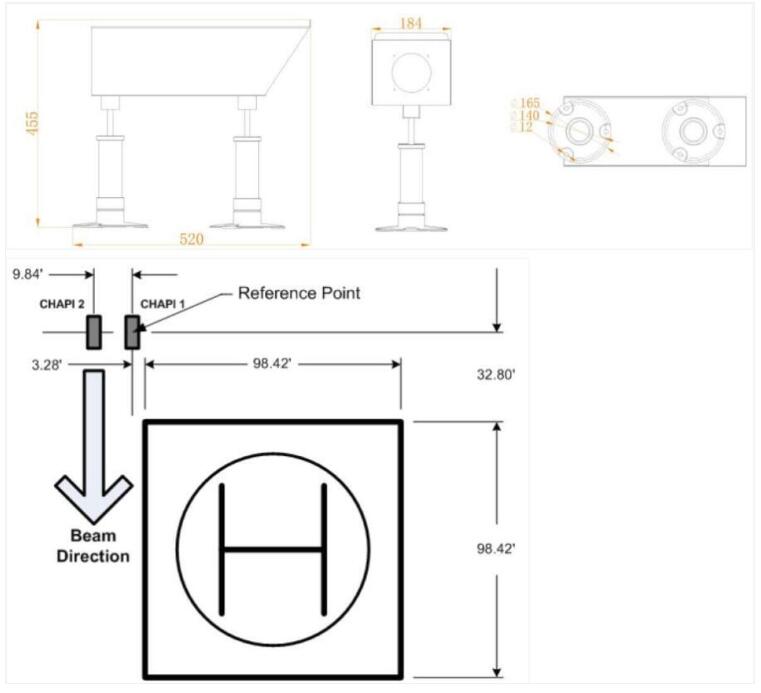

Dimension & Installation:
