Navigating the Skies: Understanding ICAO Guidelines for Aviation Lighting
The International Civil Aviation Organization (ICAO) establishes critical standards that ensure global aviation safety through its comprehensive ICAO guidelines for aviation light systems. These internationally recognized specifications create uniformity in aircraft illumination and obstacle marking across borders, serving as the foundation for national regulations worldwide. This article examines the key provisions, technical requirements, and operational implications of ICAO guidelines for aviation light, offering valuable insights for aviation professionals and regulators.
The Framework of ICAO Lighting Standards
1. Governing Documents
Annex 14: Primary standard for aerodrome lighting
Annex 6: Operational requirements for aircraft lights
Doc 9365: Manual of All-Weather Operations
Doc 9870: Technical instructions for obstacle lighting
2. Core Objectives
Ensure aircraft visibility in all conditions
Standardize lighting systems internationally

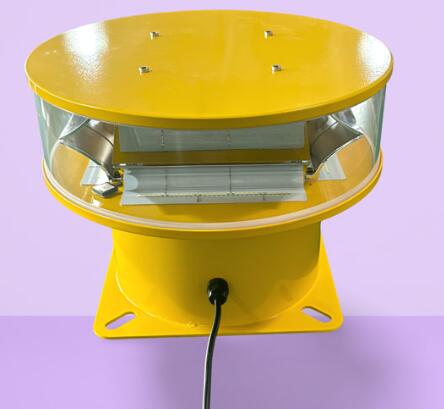

| icao guidelines for aviation light |
Prevent collisions with obstacles
Facilitate all-weather operations
Aircraft Lighting Requirements
ICAO guidelines for aviation light specify several critical aircraft illumination systems:
1. Position Lights
Red (left wingtip)
Green (right wingtip)
White (tail)
110° minimum coverage horizontally
Visible from 3 statute miles at night
2. Anti-Collision Lights
Red or white strobe systems
40-100 flashes per minute
Must be visible through 360° azimuth
3. Landing/Taxi Lights
Minimum intensity of 25,000 candela
| icao guidelines for aviation lights |
Beam spread between 3°-15° vertically
White light specification (xenon or LED)
Aerodrome Lighting Standards
ICAO's guidelines for aviation light at airports include:
1. Runway Lighting
Centerline lights: White, variable spacing
Threshold lights: Green approach side, red departure side
Touchdown zone lights: White, 3,000 candela minimum
2. Taxiway Lighting
Blue centerline lights
Green threshold lights
2,000 candela minimum intensity
3. Approach Lighting Systems
ALSF-1/2 configurations
Red/white sequenced flashing lights
5,000m visibility requirement
Obstacle Lighting Specifications
The ICAO guidelines for aviation light define three obstacle light categories:
Type Intensity Application
Low 32.5 cd Structures <45m
Medium 2,000 cd 45m-150m structures
High 200,000 cd Structures >150m
Key requirements include:
Red lights for nighttime marking
White strobes for daytime visibility
Dual lighting systems for tall structures
Synchronized flashing where multiple units are installed
Technical Performance Metrics
ICAO's guidelines for aviation light establish precise photometric standards:
Luminous Intensity
Measured in candelas (cd)
Minimum/maximum thresholds for each light type
Angular distribution requirements
Color Specifications
Chromaticity coordinates
Color rendering index
Filter durability standards
Flash Characteristics
Flash rate (40-60 fpm typical)
Flash duration
Synchronization tolerance
Operational Considerations
Implementing ICAO guidelines for aviation light requires attention to:
1. Environmental Factors
Visibility in precipitation
Temperature extremes (-40°C to +55°C)
Resistance to UV degradation
2. Power Requirements
Backup power systems
Voltage regulation
Emergency lighting provisions
3. Maintenance Protocols
Regular photometric testing
Cleaning schedules
Component replacement criteria
Compliance Verification Process
Adherence to ICAO guidelines for aviation light involves:
Certification Testing
Laboratory photometric analysis
Environmental stress testing
Durability assessments
Field Evaluations
On-site intensity measurements
Angular distribution verification
Color consistency checks
Documentation
Technical Standard Order (TSO) compliance
Maintenance records
Performance logs
Emerging Technologies and ICAO
The organization continuously evaluates new lighting innovations:
LED Advancements
Adaptive intensity control
Smart monitoring capabilities
Enhanced color rendering
Sustainable Solutions
Solar-powered systems
Energy-efficient designs
Reduced light pollution
Integrated Systems
Combined navigation/obstacle lights
Radar-activated lighting
Augmented reality overlays
Global Harmonization Efforts
ICAO works to align guidelines for aviation light with:
FAA AC 150/5345 specifications
EASA CS-ADR-DSN standards
National aviation authority regulations
Military aviation requirements
Implementation Challenges
Adopting ICAO guidelines for aviation light presents several considerations:
Retrofitting Legacy Systems
Phased implementation plans
Cost-benefit analyses
Training requirements
Technological Transitions
LED conversion strategies
Smart lighting integration
Power system upgrades
Regulatory Alignment
National rulemaking processes
Certification timelines
Compliance monitoring
Future Developments
ICAO continues to evolve its guidelines for aviation light to address:
Urban Air Mobility
eVTOL lighting standards
Vertiport marking systems
Low-altitude corridor lighting
Space Integration
High-altitude obstacle marking
Spaceport lighting
Transponder-based systems
Climate Adaptation
Extreme weather resilience
Sustainable materials
Energy-efficient designs
The ICAO guidelines for aviation light represent a critical component of global aviation safety, providing the technical foundation for visible aircraft navigation and obstacle avoidance. These comprehensive standards ensure lighting systems meet rigorous performance requirements while allowing for technological innovation. As aviation continues to evolve with new vehicle types and operational concepts, ICAO's lighting specifications will adapt to maintain safety across all flight environments.
For aviation professionals, understanding these guidelines is essential for proper system specification, installation, and maintenance. The continued harmonization of lighting standards worldwide enhances safety while reducing operational complexities for international aviation. Looking ahead, the ICAO guidelines for aviation light will remain vital as the industry embraces new technologies and confronts emerging challenges in an increasingly complex airspace environment.
